DIY Speed Radar Using ESP8266 NodeMCU and HC-SR04 Sensor

ESP8266 29-04-26

15 0

Tutorial plan

1- Objective of the project

2- Required Components

3- Circuit Connections of system

4- Micropython program of ESP8266

Objective of the project

The objective of this DIY speed radar project is to measure the speed of a moving object such as a car, a person, or a small robot. It uses simple and affordable components to reproduce the basic idea of real speed radars. The system calculates speed and displays it in real time, while also providing an alert if a predefined speed limit is exceeded. This makes it a useful educational project for understanding motion, timing, and sensor-based measurement systems.

The functioning of the system is based on the principle that speed equals distance divided by time. Two HC-SR04 ultrasonic sensor sensors are placed a fixed distance apart along the path of the moving object. When the object passes in front of the first sensor, it detects the object and sends a signal to the ESP8266 NodeMCU, which records the starting time. As the object continues moving, it eventually passes in front of the second sensor, which triggers another signal and allows the NodeMCU to record the ending time.

The system then calculates the time difference between the two detections. Since the distance between the sensors is known in advance, the NodeMCU computes the speed using the formula speed = distance / time. The result can be converted into more familiar units such as kilometers per hour. This simple method provides a reliable estimation of the object’s speed as long as the sensors are properly aligned and the distance between them is accurately measured.

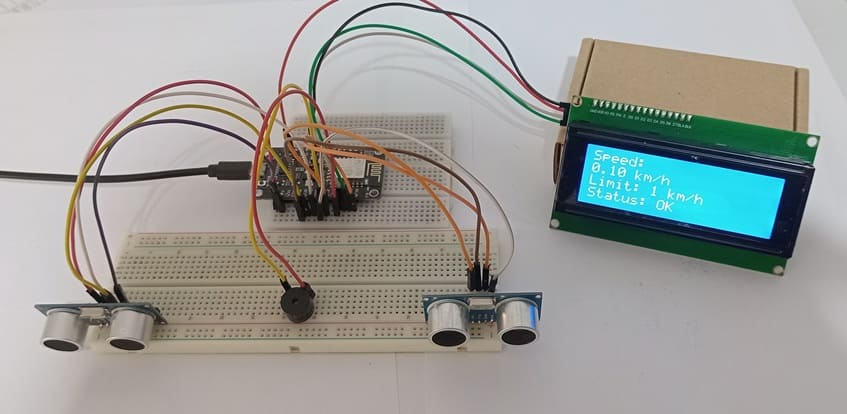

The calculated speed is displayed on an LCD I2C display, allowing the user to see the result instantly. In addition, a buzzer electronic component is used as an alert system. If the measured speed exceeds a predefined threshold, the buzzer emits a sound to warn that the speed limit has been surpassed. This feature simulates real-world speed monitoring systems and adds an interactive aspect to the project.

Required Components

1. ESP8266 NodeMCU board

The ESP8266 NodeMCU is the central controller of the project. It is a microcontroller board with built-in Wi-Fi capability that processes all the data from the sensors. It measures the time between detections, calculates the speed, controls the display, and activates the buzzer when necessary. Its compact size and ease of programming make it ideal for this type of embedded system project.

2. HC-SR04 sensor

HC-SR04

The two HC-SR04 ultrasonic sensor modules are used to detect the presence of a moving object. Each sensor emits ultrasonic waves and measures the time it takes for the echo to return after bouncing off an object. In this project, instead of measuring distance continuously, they act as detection points. When an object passes in front of each sensor, it triggers a timing event that allows the system to calculate speed.

3- Buzzer :

The buzzer is used to notify the user through sound based on the measured speed. When the calculated speed exceeds a predefined limit, the buzzer turns on to warn that the object is moving too fast.

4. LCD Display with I2C Module

The I2C LCD screen is used to display real-time information such as the measured speed, system status, and warning messages.

5. Breadboard

Breadboard

A breadboard is used to assemble the circuit without soldering. It makes it easy to connect and modify the components during testing and development.

6. Jumper Wires

Jumper wires

Jumper wires are used to connect the ESP8266 board, HC-SR04 sensors, and LCD display together. They ensure proper electrical connections between all components.

Circuit Connections of system

1- Connecting the first HC-SR04 sensor to the ESP8266 board

HC-SR04	ESP8266 board
VCC	3 V
Trig	D5
Echo	D6
GND	GND

2- Connecting the second HC-SR04 sensor to the ESP8266 board

HC-SR04	ESP8266 board
VCC	3 V
Trig	D7
Echo	D8
GND	GND

3- Connecting the Buzzer to the ESP8266 board

Buzzer	ESP8266 board
(+) Terminal	D3
(-) Terminal	GND

4- Connection of LCD I2C display to ESP8266 board

LCD I2C display	ESP8266 board
VCC	5V of GPIO card
GND	GND
SDA	D2
SCL	D1

Micropython program of ESP8266

This Micropython program implements a DIY speed radar system using an ESP8266 microcontroller, two HC-SR04 ultrasonic sensors, an I2C LCD display, and a buzzer. The main purpose of the system is to measure the speed of a moving object by calculating the time it takes to travel between two fixed points.

You need to install this libraries : i2c_lcd et lcd_api for I2C LCD screen

from machine import Pin, I2C, time_pulse_us
import time
from i2c_lcd import I2cLcd

# =========================
# CONFIGURATION
# =========================

DISTANCE = 0.20        # Distance between the two sensors (in meters)
THRESHOLD = 10         # Detection threshold (in cm)
SPEED_LIMIT = 1        # Speed limit (in km/h)

# Sensor 1 (start detection)
trig1 = Pin(14, Pin.OUT)  # Trigger pin (D5)
echo1 = Pin(12, Pin.IN)   # Echo pin (D6)

# Sensor 2 (end detection)
trig2 = Pin(13, Pin.OUT)  # Trigger pin (D7)
echo2 = Pin(16, Pin.IN)   # Echo pin (D0)

# Buzzer for alert
buzzer = Pin(0, Pin.OUT)  # Buzzer pin (D3)

# LCD I2C configuration
i2c = I2C(scl=Pin(5), sda=Pin(4), freq=400000)
lcd = I2cLcd(i2c, 0x27, 4, 20)  # 20x4 LCD

# =========================
# FUNCTIONS
# =========================

def measure_distance(trig, echo):
    """
    Measure distance using HC-SR04 sensor
    Returns distance in centimeters
    """
    trig.value(0)
    time.sleep_us(2)

    # Send 10µs pulse to trigger
    trig.value(1)
    time.sleep_us(10)
    trig.value(0)

    # Measure echo pulse duration
    duration = time_pulse_us(echo, 1, 30000)

    # If timeout or error
    if duration < 0:
        return None

    # Convert time to distance (cm)
    return (duration * 0.0343) / 2


def object_detected(trig, echo):
    """
    Check if an object is detected within threshold distance
    """
    d = measure_distance(trig, echo)
    return d is not None and d < THRESHOLD


def display(l1="", l2="", l3="", l4=""):
    """
    Display 4 lines on the LCD
    """
    lcd.clear()
    lcd.move_to(0, 0)
    lcd.putstr(l1)
    lcd.move_to(0, 1)
    lcd.putstr(l2)
    lcd.move_to(0, 2)
    lcd.putstr(l3)
    lcd.move_to(0, 3)
    lcd.putstr(l4)


def beep(ms=200):
    """
    Activate buzzer for a given duration (milliseconds)
    """
    buzzer.value(1)
    time.sleep_ms(ms)
    buzzer.value(0)

# =========================
# INITIALIZATION
# =========================

# Display startup message
display("ESP8266 RADAR", "Initializing...", "", "")
time.sleep(2)

# =========================
# MAIN LOOP
# =========================

while True:

    # System ready message
    display("Radar active", "Waiting object...", "", "")

    # Wait until object is detected by sensor 1
    while not object_detected(trig1, echo1):
        time.sleep_ms(5)

    # Record start time
    t1 = time.ticks_us()

    display("Object detected", "Measuring...", "", "")

    # Wait until object is detected by sensor 2
    while not object_detected(trig2, echo2):
        time.sleep_ms(5)

    # Record end time
    t2 = time.ticks_us()

    # Calculate time difference (in seconds)
    delta_t = time.ticks_diff(t2, t1) / 1_000_000

    if delta_t > 0:

        # Calculate speed in km/h
        speed = (DISTANCE / delta_t) * 3.6

        # Display speed and limit
        display(
            "Speed:",
            "{:.2f} km/h".format(speed),
            "Limit: {} km/h".format(SPEED_LIMIT),
            "Status:"
        )

        if speed > SPEED_LIMIT:
            lcd.move_to(8, 3)
            lcd.putstr("OVER")  # Speed exceeded

            # Activate alarm (multiple beeps)
            for _ in range(15):
                beep(150)
                time.sleep_ms(100)
        else:
            lcd.move_to(8, 3)
            lcd.putstr("OK")  # Speed within limit
            beep(80)

    else:
        # Error if time is invalid
        display("Error", "Invalid time", "", "")

    # Wait before next measurement
    time.sleep(5)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

from machine import Pin, I2C, time_pulse_us

import time

from i2c_lcd import I2cLcd

# =========================

# CONFIGURATION

# =========================

DISTANCE = 0.20 # Distance between the two sensors (in meters)

THRESHOLD = 10 # Detection threshold (in cm)

SPEED_LIMIT = 1 # Speed limit (in km/h)

# Sensor 1 (start detection)

trig1 = Pin(14, Pin.OUT) # Trigger pin (D5)

echo1 = Pin(12, Pin.IN) # Echo pin (D6)

# Sensor 2 (end detection)

trig2 = Pin(13, Pin.OUT) # Trigger pin (D7)

echo2 = Pin(16, Pin.IN) # Echo pin (D0)

# Buzzer for alert

buzzer = Pin(0, Pin.OUT) # Buzzer pin (D3)

# LCD I2C configuration

i2c = I2C(scl=Pin(5), sda=Pin(4), freq=400000)

lcd = I2cLcd(i2c, 0x27, 4, 20) # 20x4 LCD

# =========================

# FUNCTIONS

# =========================

def measure_distance(trig, echo):

"""

Measure distance using HC-SR04 sensor

Returns distance in centimeters

"""

trig.value(0)

time.sleep_us(2)

# Send 10µs pulse to trigger

trig.value(1)

time.sleep_us(10)

trig.value(0)

# Measure echo pulse duration

duration = time_pulse_us(echo, 1, 30000)

# If timeout or error

if duration < 0:

return None

# Convert time to distance (cm)

return (duration * 0.0343) / 2

def object_detected(trig, echo):

"""

Check if an object is detected within threshold distance

"""

d = measure_distance(trig, echo)

return d is not None and d < THRESHOLD

def display(l1="", l2="", l3="", l4=""):

"""

Display 4 lines on the LCD

"""

lcd.clear()

lcd.move_to(0, 0)

lcd.putstr(l1)

lcd.move_to(0, 1)

lcd.putstr(l2)

lcd.move_to(0, 2)

lcd.putstr(l3)

lcd.move_to(0, 3)

lcd.putstr(l4)

def beep(ms=200):

"""

Activate buzzer for a given duration (milliseconds)

"""

buzzer.value(1)

time.sleep_ms(ms)

buzzer.value(0)

# =========================

# INITIALIZATION

# =========================

# Display startup message

display("ESP8266 RADAR", "Initializing...", "", "")

time.sleep(2)

# =========================

# MAIN LOOP

# =========================

while True:

# System ready message

display("Radar active", "Waiting object...", "", "")

# Wait until object is detected by sensor 1

while not object_detected(trig1, echo1):

time.sleep_ms(5)

# Record start time

t1 = time.ticks_us()

display("Object detected", "Measuring...", "", "")

# Wait until object is detected by sensor 2

while not object_detected(trig2, echo2):

time.sleep_ms(5)

# Record end time

t2 = time.ticks_us()

# Calculate time difference (in seconds)

delta_t = time.ticks_diff(t2, t1) / 1_000_000

if delta_t > 0:

# Calculate speed in km/h

speed = (DISTANCE / delta_t) * 3.6

# Display speed and limit

display(

"Speed:",

"{:.2f} km/h".format(speed),

"Limit: {} km/h".format(SPEED_LIMIT),

"Status:"

)

if speed > SPEED_LIMIT:

lcd.move_to(8, 3)

lcd.putstr("OVER") # Speed exceeded

# Activate alarm (multiple beeps)

for _ in range(15):

beep(150)

time.sleep_ms(100)

else:

lcd.move_to(8, 3)

lcd.putstr("OK") # Speed within limit

beep(80)

else:

# Error if time is invalid

display("Error", "Invalid time", "", "")

# Wait before next measurement

time.sleep(5)

At the beginning, the program defines key parameters such as the distance between the two sensors, the detection threshold, and the maximum allowed speed. It also configures all the hardware components: the two ultrasonic sensors (each with a trigger and echo pin), the buzzer for alerts, and the LCD screen for displaying information. When the system starts, it shows an initialization message on the LCD to indicate that the radar is ready.

The program includes several functions to organize its operation. One function measures the distance using an ultrasonic sensor by sending a pulse and calculating how long it takes for the echo to return. Another function checks whether an object is detected based on a distance threshold. Additional functions manage the LCD display and control the buzzer sound.

In the main loop, the system continuously waits for an object to pass in front of the first sensor. When this happens, it records the exact time. Then it waits for the same object to reach the second sensor and records a second timestamp. Using these two times, the program calculates the time difference, which represents how long the object took to travel between the sensors.

Once the time is known, the program calculates the speed using the formula speed = distance ÷ time and converts it into kilometers per hour. The result is displayed on the LCD screen along with the predefined speed limit. If the measured speed exceeds this limit, the system displays a warning message (“OVER”) and activates the buzzer repeatedly as an alarm. If the speed is within the limit, it displays “OK” and emits a short beep.

Finally, the program pauses briefly before restarting the process, allowing continuous monitoring of moving objects. Overall, this program demonstrates how to combine sensors, timing functions, and output devices to build a simple yet effective speed measurement system.
