What is A4988 Stepper Motor Driver ?

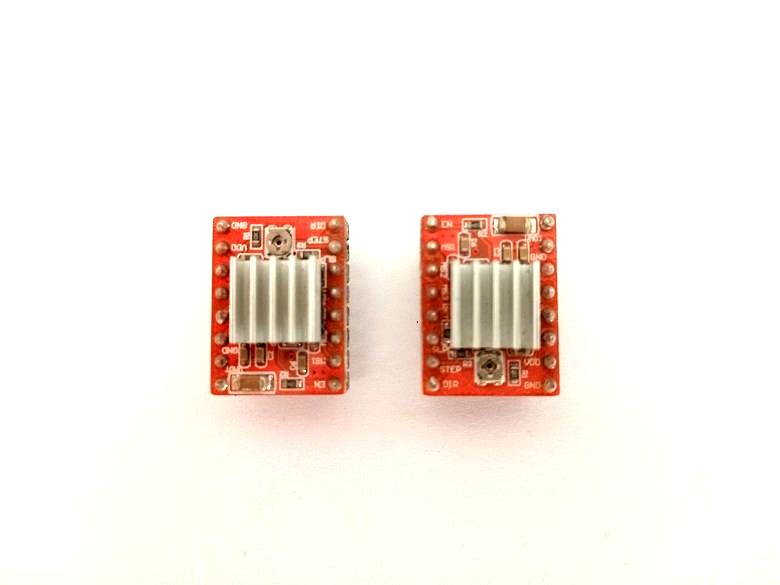

The A4988 is a popular stepper motor driver integrated circuit (IC) that is used to control bipolar stepper motors in a wide range of applications. The A4988 driver is capable of microstepping, which allows for smooth and precise motor movement.

The A4988 driver uses a chopper circuit to regulate the current flowing through the motor coils, which allows for more efficient power usage and reduced heat dissipation. It can handle motor currents of up to 2A per coil, and has built-in thermal shutdown protection to prevent damage from overheating.

The driver is compatible with a range of microcontrollers, including the popular Arduino platform, and can be easily integrated into DIY projects. It has several configurable features, including adjustable microstepping resolutions and current limits.

The A4988 driver is commonly used in 3D printers, CNC machines, robotics, and other applications that require precise control of stepper motors. It is also available in various breakout board designs that make it easy to use in breadboard prototyping or soldered PCB designs.

A4988 stepper motor driver and CNC Shield v3.0

The A4988 stepper motor driver is commonly used in combination with the CNC Shield v3.0 board to control stepper motors in CNC machines. The CNC Shield v3.0 is a circuit board that allows for the control of up to four stepper motors using an Arduino microcontroller.

To use the A4988 stepper motor driver with the CNC Shield v3.0, you will need to connect the driver to the corresponding pins on the CNC Shield board. The STEP, DIR, and ENABLE pins on the driver should be connected to the corresponding pins on the CNC Shield board. The MS1, MS2, and MS3 pins on the driver can be used to set the microstepping resolution of the motor, while the VREF pin can be used to set the maximum current limit for the motor.

It's important to note that each A4988 driver must be configured individually for each stepper motor. This means that if you are using multiple stepper motors in your CNC machine, you will need to configure each driver accordingly.

The combination of the A4988 stepper motor driver and the CNC Shield v3.0 board provides a simple and cost-effective solution for controlling stepper motors in CNC machines and other applications that require precise motor control.
