NEO-6M GPS module

Components 25-04-23
244 0

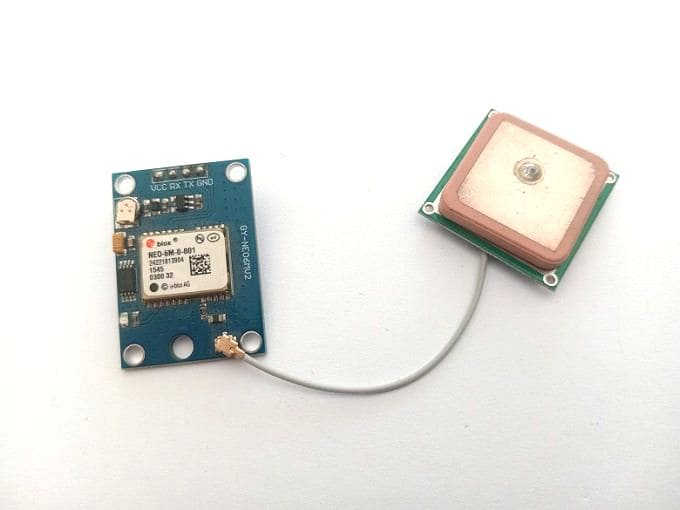

Definition of the NEO-6M module

The NEO-6M module is a compact and user-friendly GPS (Global Positioning System) module designed to provide accurate positioning information to electronic devices such as microcontrollers, computers, or smartphones. It uses a high-quality GPS chip to receive satellite signals and calculate position, velocity, and time accurately.

The NEO-6M module is compatible with several communication protocols such as UART (Universal Asynchronous Receiver-Transmitter), SPI (Serial Peripheral Interface), and I2C (Inter-Integrated Circuit), making it easy to integrate into many electronic projects. Additionally, the module is equipped with an integrated GPS antenna, making it even easier to use and integrate into projects.

Operation of the NEO-6M Module

The NEO-6M module operates by receiving signals from GPS satellites orbiting the Earth. These signals contain information such as the satellite's location, the time the signal was sent, and other data.

The module uses a high-quality GPS receiver to process these signals and calculate its own position, velocity, and time. It then outputs this information through one of the module's communication interfaces, such as UART or SPI.

To use the NEO-6M module, it must be connected to a microcontroller or other electronic device. The device can then send commands to the module to configure its settings and request positioning information.

The module also has several built-in features, such as a backup power supply and an integrated GPS antenna, which make it easy to use and integrate into projects.

The types of the NEO-6M module

There are several types of the NEO-6M module, each with different features and specifications. Some of the common types are:

NEO-6M-0-001: This is a basic version of the module with a single serial communication interface (UART).

NEO-6M-0-001T: This module is similar to the basic version but also includes an integrated antenna.

NEO-6M-0-000: This is a higher-end version of the module with multiple communication interfaces (UART, SPI, and I2C) and a faster update rate for position information.

NEO-6M-0-001B: This module is designed for use in battery-powered applications and includes a low-power mode to conserve energy.

NEO-6M-0-001G: This is a specialized version of the module designed for use in unmanned aerial vehicles (UAVs) and other high-altitude applications.

The NEO-6M module and robotics

The NEO-6M module can be a useful component in robotics applications that require accurate positioning information. With the module's ability to provide precise GPS coordinates, a robot can determine its location and navigate to specific destinations, which is crucial in many robotics applications such as autonomous vehicles, drones, and mobile robots.

For example, in autonomous vehicles, the NEO-6M module can be used to provide location data to the vehicle's onboard computer, which can then use this information to navigate the vehicle to its destination. Similarly, in drones and mobile robots, the module can be used to provide precise location data for navigation and tracking purposes.

Furthermore, the NEO-6M module can also be used in robotics applications that involve tracking and monitoring the movement of objects or individuals. For instance, a robot equipped with the NEO-6M module can track the location of a moving object or individual, allowing it to follow or monitor their movement.[/vc_column_text]

The NEO-6M module is designed to work with microcontrollers and can be easily integrated into projects using various communication interfaces such as UART, SPI, and I2C. The module can provide a reliable source of GPS data for microcontroller-based applications, such as weather stations, GPS trackers, and navigation systems.

To use the NEO-6M module with a microcontroller, the module must be connected to the microcontroller using the appropriate communication interface. The microcontroller can then send commands to the module to configure its settings and request positioning data. The module will respond with the requested data, which the microcontroller can then process and use in its application.

Many microcontroller development boards, such as the Arduino and Raspberry Pi, have built-in support for the NEO-6M module, with libraries and code examples available for easy integration. This makes it simple for hobbyists and engineers to add GPS capabilities to their microcontroller-based projects.
